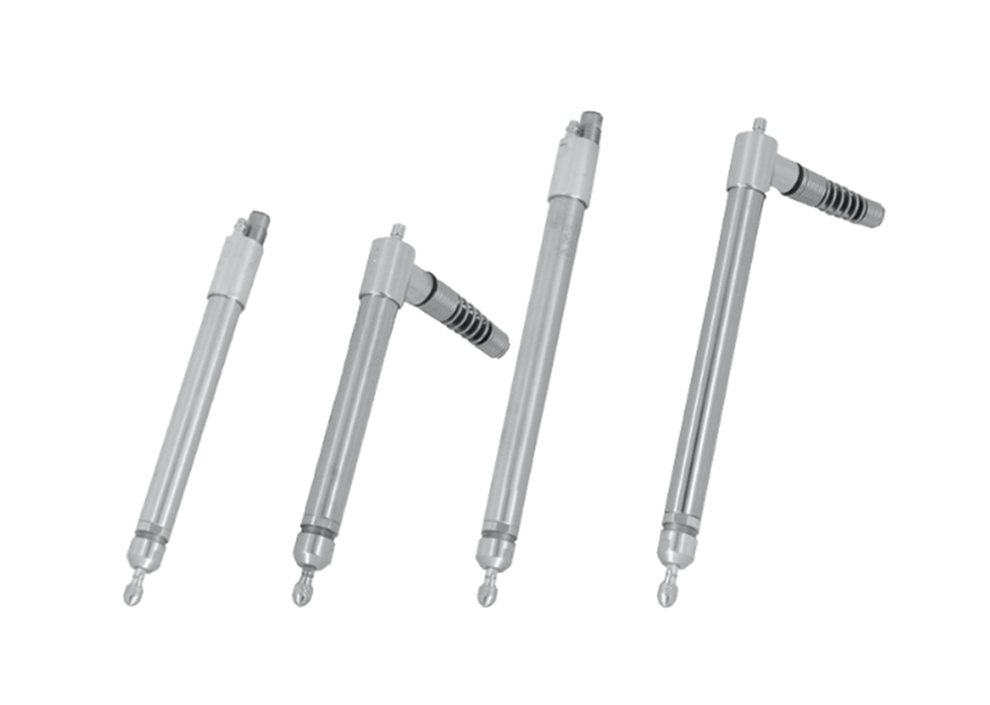

Analog Probes
Soft pneumatic push (HBT type)
  • – Ultra soft pneumatic touch, Min. 6g force control
  • – For the part deformed easily by force
  • – To the part which is easy to damage by force
  • – Measuring range : ±2mm to ±5mm
Model DP–S4AL DP–S4VAL DP–10AL DP–10VAL
Plunger movement by Pneumatic, Ultra soft touch
Maximum stroke 4.9mm 10.45mm
Measuring range ±2mm ±5mm
Repeatability ≤0.15μm ≤0.4μm
Linearity error (µm, At Full Measuring range) ≤20(0.5%) [ ≤2(0.1%) at +/-1.0mm ] ≤50(0.5%) [ ≤18(0.3%) at +/-3.0mm ]
Air pressure, Force (±25%, at electrical zero) 0.2 – 0.7 bar (0.06~0.3 N) 0.2 – 0.7 bar (0.06~0.3 N)
Cable Outlet Axial Radial Axial Radial
*Cable length 2.2m 3m
External Diameter
Gaiter – – – –
Life
Operating temp.
  • 컨텐츠 이미지

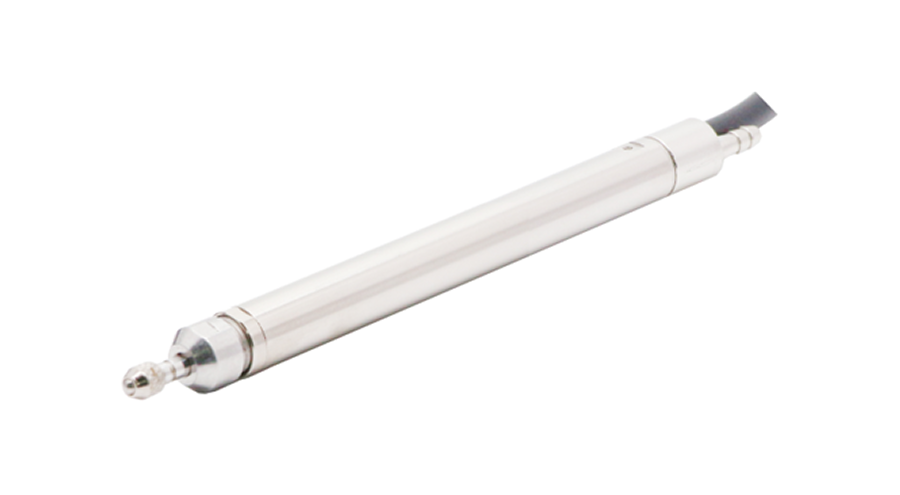

    DP-S4AL +/-2.0mm, Soft Pneumatic push, Axial Cable Manual 2D(pdf) 2D(dwg) 3D
    DP-10AL +/-5.0mm, Soft Pneumatic push, Axial Cable Manual 2D(pdf) 2D(dwg) 3D
  • 컨텐츠 이미지

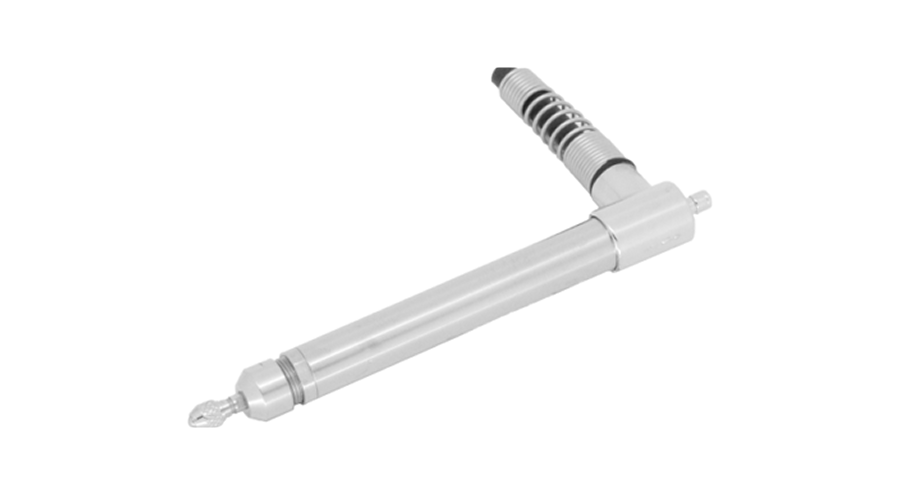

    DP-S4VAL +/-2.0mm, Soft Pneumatic push, Radial Cable Manual 2D(pdf) 2D(dwg) 3D
    DP-10VAL +/-5.0mm, Soft Pneumatic push, Radial Cable Manual 2D(pdf) 2D(dwg) 3D

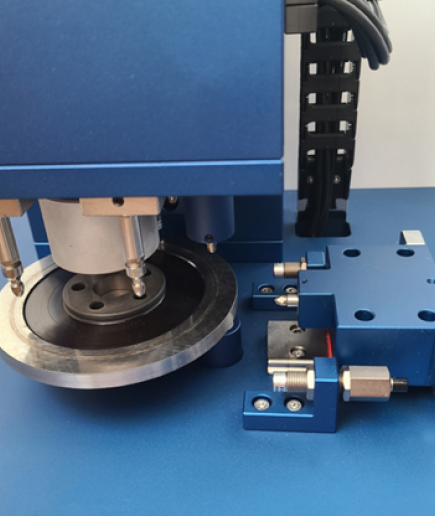

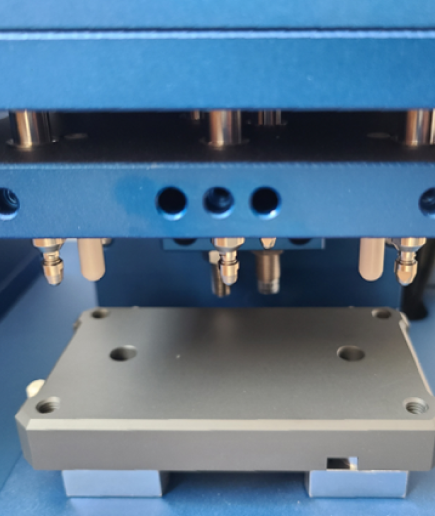

Applications
  • 컨텐츠 이미지
  • 컨텐츠 이미지
  • 컨텐츠 이미지
  • 컨텐츠 이미지
