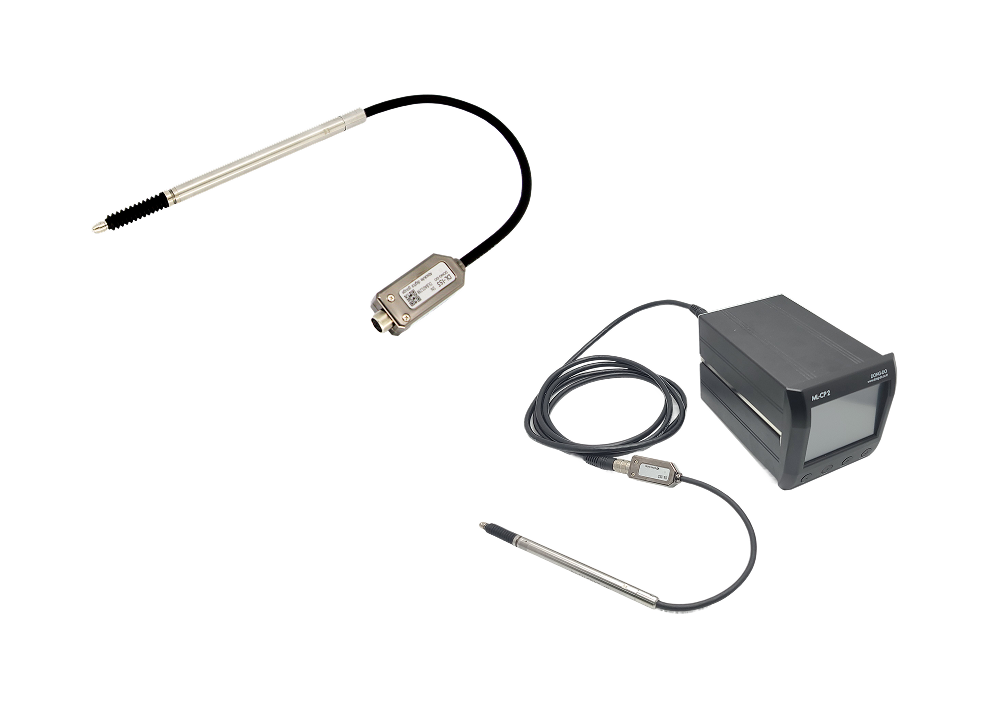

Digital Linear Probe
-
– Absolute type digital linear gauge (No lost its position) -
– Measuring range : 15mm -
– Resolution : 0.1um -
– Accuracy : ±1um -
– Compact size : ø8 pencil type. -
– Excellent resistance to workshop conditions -
– Various & multi channel applications
| Model | DL-15S | DL-15S-RS |
| Measuring principle | Optical absolute linear encoder | |
| Measuring range | 15mm | |
| Resolution | 0.1μm | |
| Accuracy | ±1μm | |
| Measuring Force(±25%, in the middle pos.) | 80g (0.8N) | |
| Mounting stem diameter | ø8mm | |
| Output | None* | RS485 |
| Operating temperature | 5°C to 50°C, ref. temperature 20°C | |
| Cable length | 2m/5m/10m cables | |
| Mass | Approx. 45g | |
* It should be connected to DONGDO EI’s ML-series amps.
Applications
-

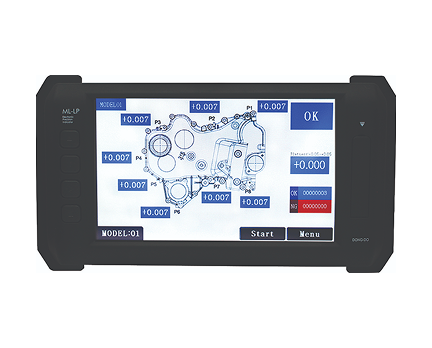

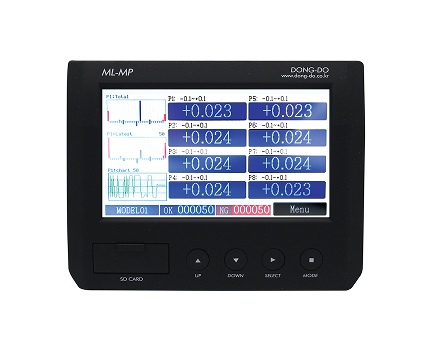

ML-LP -
ML-MP -

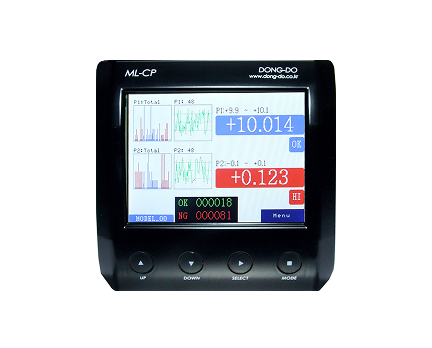

ML-CP -
CM-2000
-
– Used with various electronic micrometers -
– 1~16ch multi channel measuring solutions -
– Various calculation modes(+, -, x, /, avg, max, min M-m) -
– RS232 /RS485 Communication -
– I/O interface
-

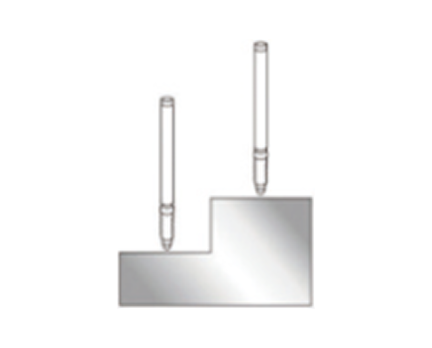

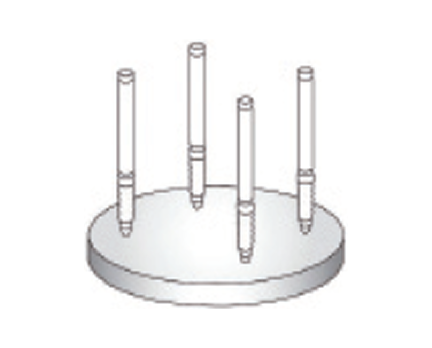

Height -
Diameter -
Flatness

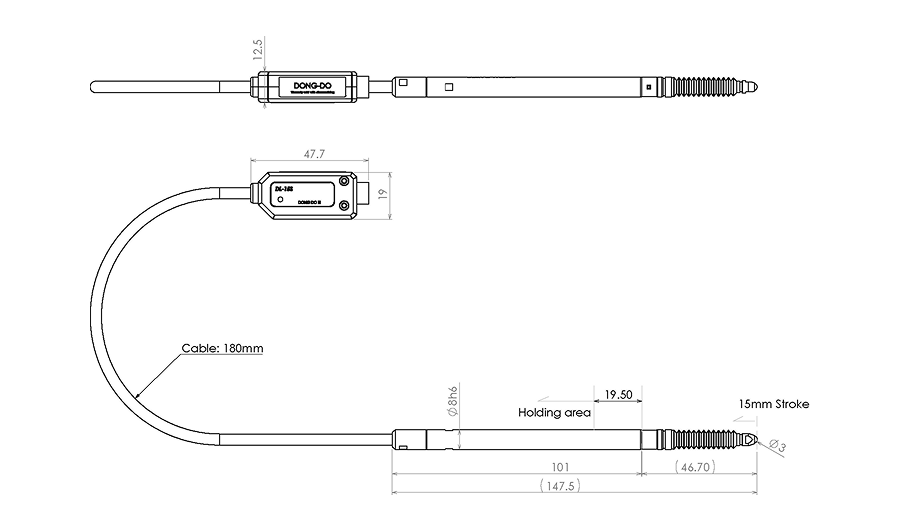

Dimensions
-

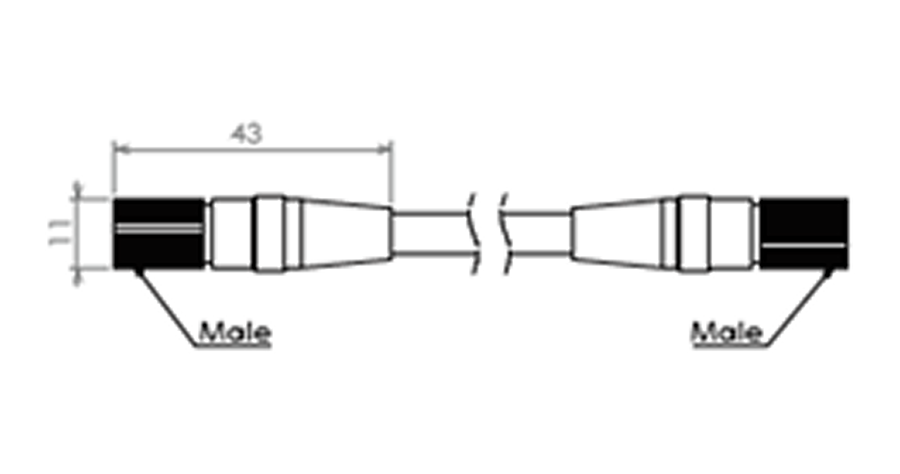

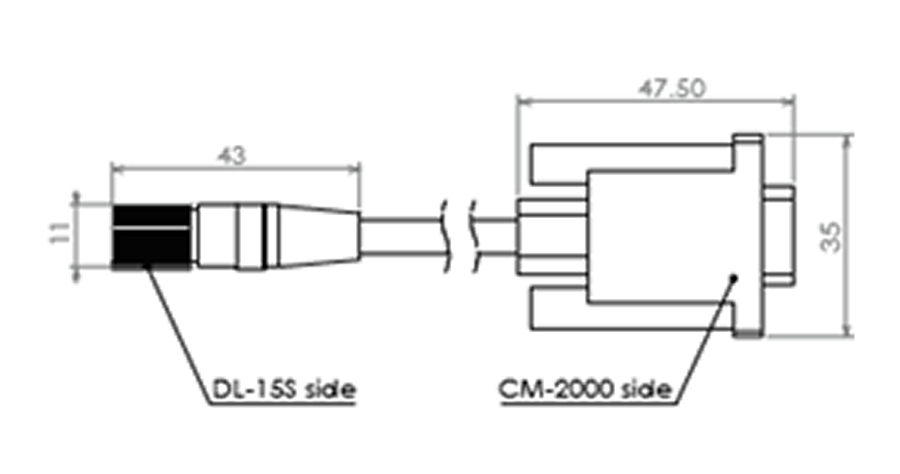

Cable for DL-15S-
– DLDSC-02(2M) -
– DLDSC-05(5M) -
– DLDSC-10(10M)
-
-
Cable for DL-15S-RS-
– DLDSC-02-RS -
– DLDSC-05-RS -
– DLDSC-10-RS
-
Digital Linear Probes
RS485 Application
CM-2000
-

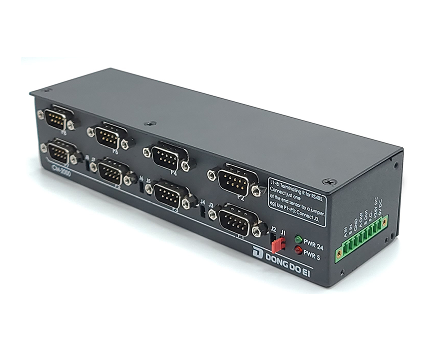

– RS485 connection box for DL-15S-RS -
– Max connection per unit : 8ch -
– 4 units extension is possible(Max 32ch) -
– Data acquisition time: 20ms per sensor -
– Easy RS485 wiring -
– Low price

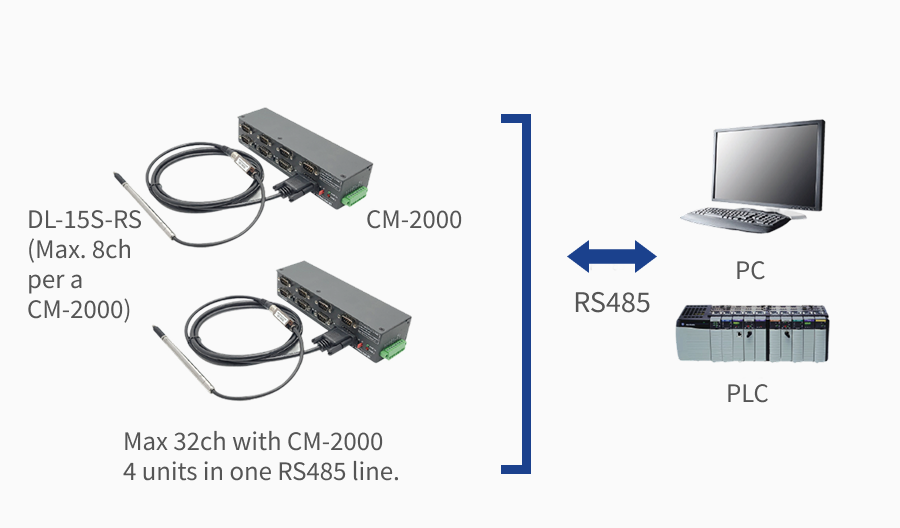

System composition
Setting tool(Software)
Free software to change Baud rate & ID for DL-15S-RS
