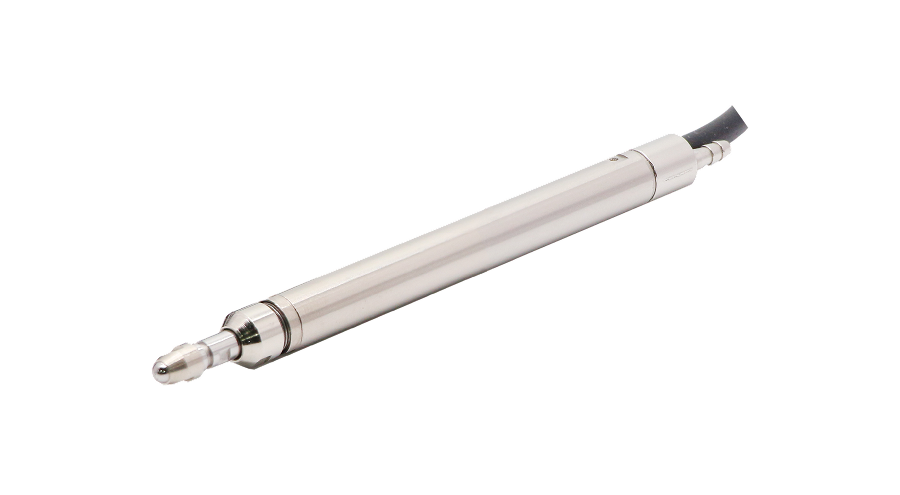

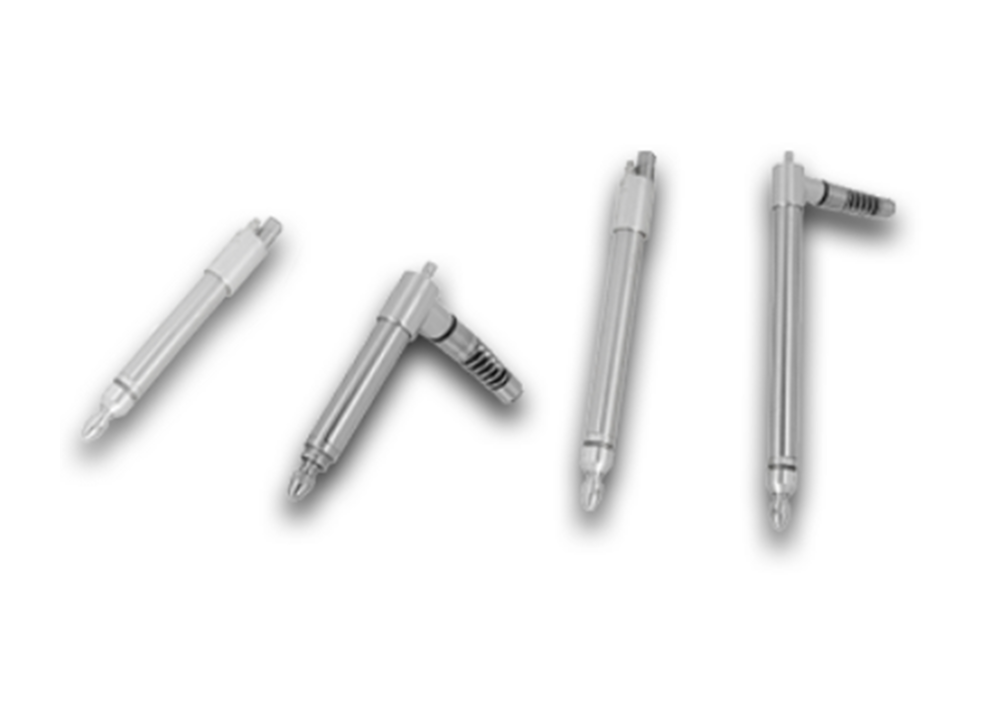

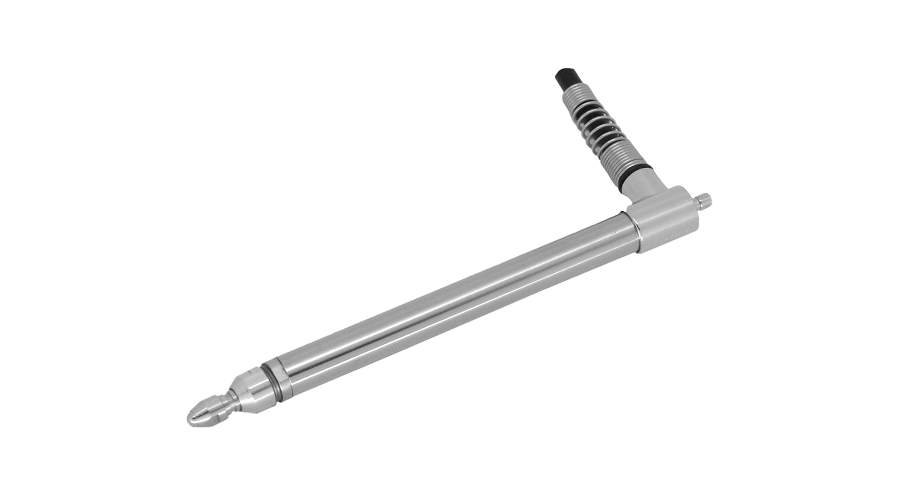

Analog Probes(Pneumatic push)
Analog Probes
Pneumatic push (HBT type)
-
– Simple & low cost system -
– Protecting probes from a damage -
– Measuring range : ±1.0mm to ±5.0mm
| Model | DP-S2A | DP_S2VA | DP-S4A | DP–S4AB | DP–S4VA | DP–S4VAB | DP–10A | DP–10AB | DP–10VA | DP–10VAB |
| Plunger movement by | Pneumatic | |||||||||
| Maximum stroke | 2.8mm | 4.9mm | 10.45mm | |||||||
| Measuring range | ±1mm | ±2mm | ±5mm | |||||||
| Repeatability | ≤0.15μm | ≤0.15μm | ≤0.4um | |||||||
| Linearity error (µm, At Full Measuring range) | ≤4(0.2%) | ≤20(0.5%) [ ≤2(0.1%) at +/-1.0mm ] | <50(0.5%) [≤18(0.3%) at +/-3.0mm ] | |||||||
| Air pressure, Force (±25%, at electrical zero) | 0.5 – 1.0 bar (0.3~0.9 N) | 0.5 – 1.0 bar (0.3~0.9 N) | 0.5 – 1.0 bar (0.5~1.1 N) | 0.3 – 0.5 bar (0.8~1.3 N) | 0.5 – 1.0 bar (0.5~1.1 N) | 0.3 – 0.5 bar (0.8~1.3 N) | 0.5 – 1.0 bar (0.5~1.1 N) | 0.3 – 0.5 bar (0.8~1.3 N) | 0.5 – 1.0 bar (0.5~1.1 N) | 0.3 – 0.5 bar (0.8~1.3 N) |
| Cable Outlet | Axial | Radial | Axial | Axial | Radial | Radial | Axial | Axial | Radial | Radial |
| *Cable length | 2.2m | 3m | ||||||||
| External Diameter | Ø8mm | Ø8mm | ||||||||
| Gaiter | – | – | – | FKM (Fluoroelastomer) | – | FKM (Fluoroelastomer) | – | FKM (Fluoroelastomer) | – | FKM (Fluoroelastomer) |
| Life | Generally, ≥10 million in most application | |||||||||
| Operating temp. | 0~50 °C | |||||||||

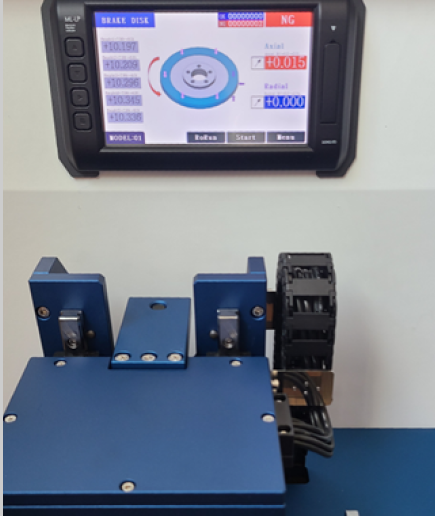

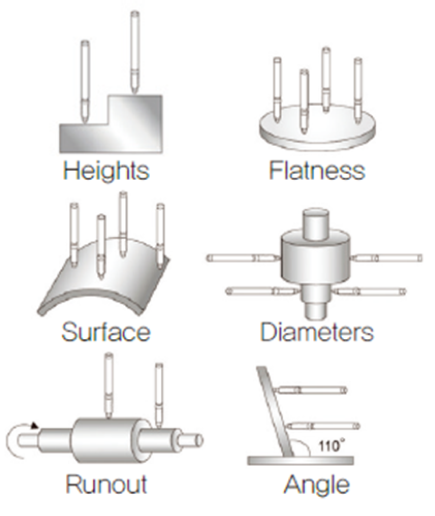

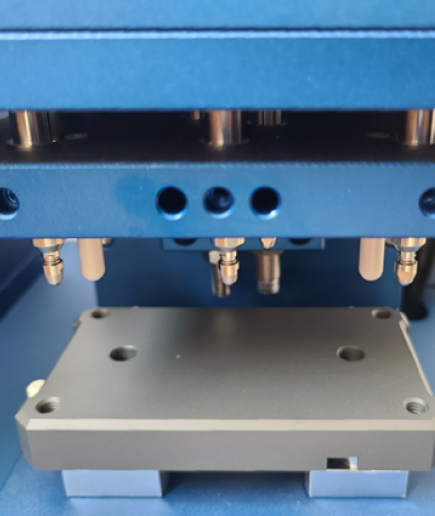

Applications
